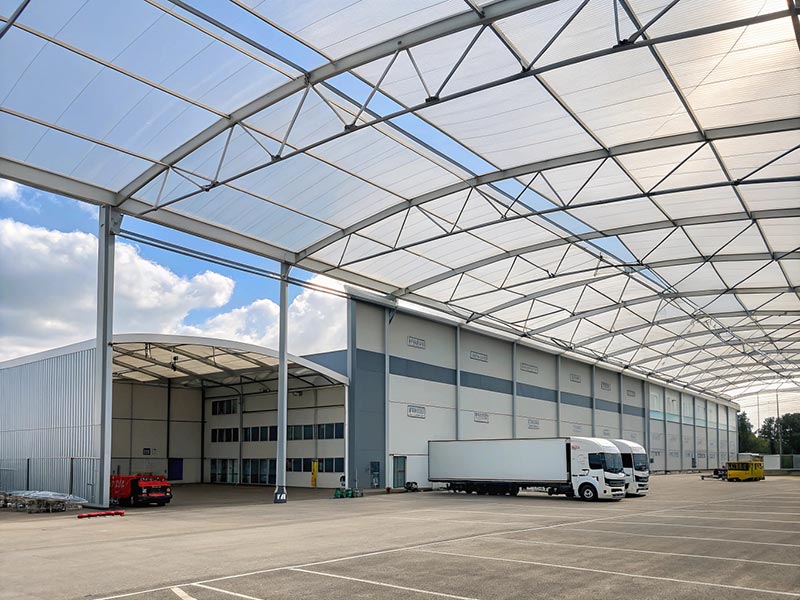

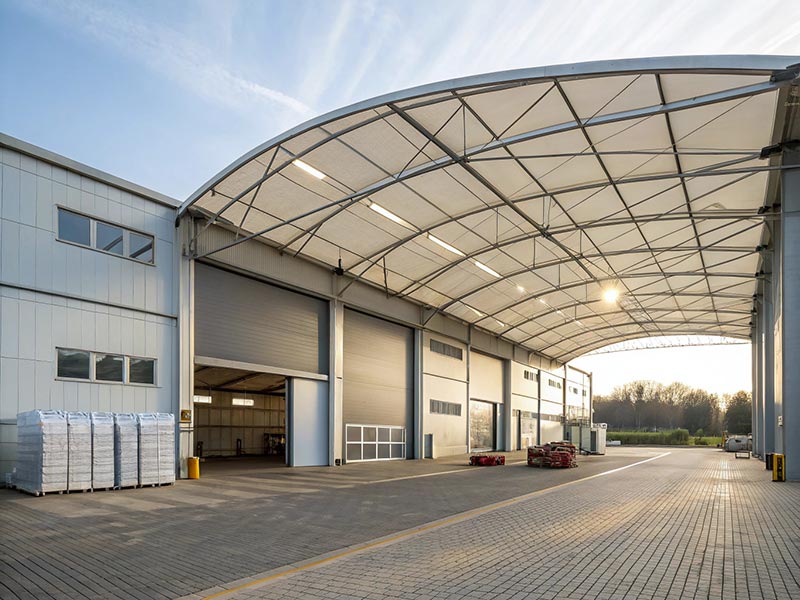

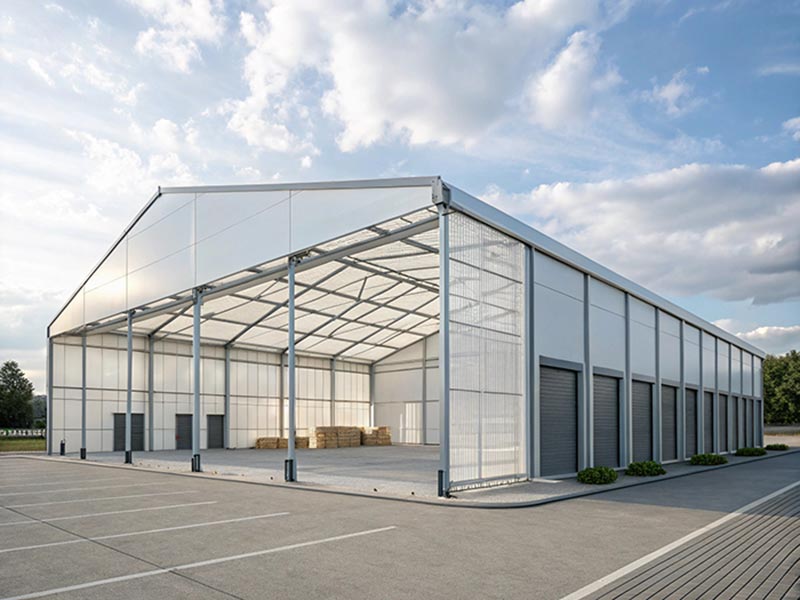

New storage building solution: PVC fabric roof + steel structure
In the wave of global logistics upgrades and industrial facility expansion, the innovative combination of steel structure and PVC fabric roof is reshaping the paradigm of modern warehouse buildings. With its unique performance, this structural system provides an ideal choice that combines economy and functionality for users in different climate zones and with different scale needs.
Ⅰ. Advantages of PVC fabric roof

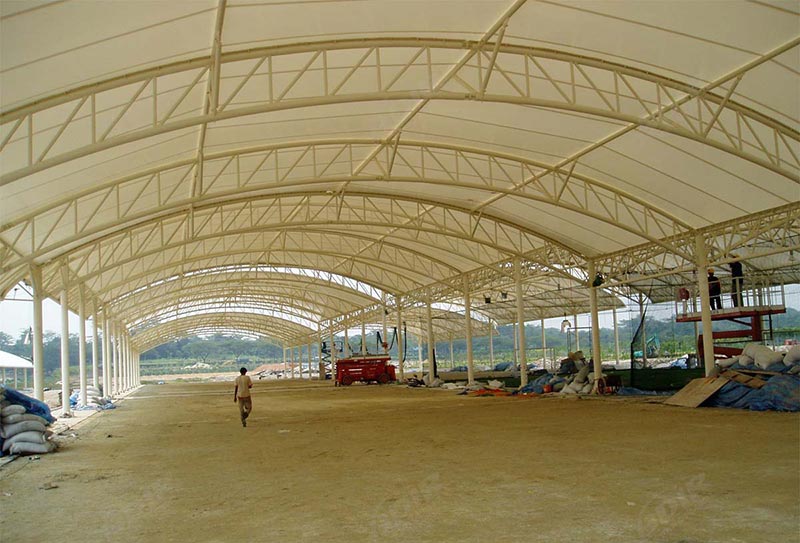

1.1 Extreme lightweight and free span
The self-weight is only 1/30 of that of traditional roofs, which greatly reduces the load on the main structure. The column-free design achieves a super-large span of 60m+, and the space utilization rate is increased by 40%.
Applicable scenarios: large space requirements such as aviation logistics centers and agricultural machinery storage.
1.2 Intelligent environmental adjustment system
Natural lighting optimization
▶ The light transmittance is adjustable from 10% to 25%, eliminating daytime lighting energy consumption.
▶ Diffuse light to avoid glare in warehouse operations.
Excellent thermal performance
▶ Tropical regions: Reflect 90% of ultraviolet rays, and the indoor temperature is 8-12℃ lower than that of metal roofs.
▶ Cold regions: Insulation coefficient K≤1.5W/m²K, reducing heating load.
1.3 Disaster resistance and life guarantee
- Wind pressure resistance level ≥ISO 9000 Class 1 (withstand 60m/s wind speed).
- Fire rating B1 (self-extinguishing material).
- Corrosion resistance life 25 years+ (applicable to saline/industrial pollution environment).
1.4 Sustainability benchmark
- Production energy consumption is only 1/5 of that of metal roofs.
- 100% recyclable materials, carbon footprint reduced by 45%.
- Rainwater collection compatibility (pH neutral surface).
Ⅱ. The synergistic empowerment value of steel structure skeleton
2.1 Accurate and efficient support system

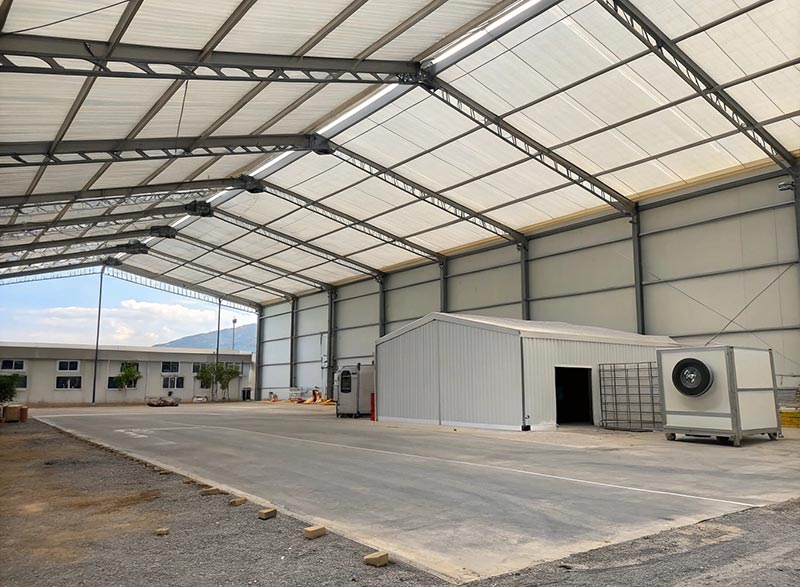

H-shaped steel beams and columns accurately bear fabric tension, and modular node design enables rapid main body capping in 7-10 days.
Case: Saudi Arabia e-commerce warehouse project 30,000㎡ steel structure completed in 21 days.
2.2 All-weather adaptability enhancement
- Steel structure anti-corrosion coating + PVC anti-UV coating double protection.
- Snow load distribution optimization (slope adaptive design).
- High ductility structure in earthquake zone (seismic level 8 design verification).
2.3 Full-cycle cost advantage
Cost dimension | raditional concrete warehouse | Steel structure + metal plate warehouse | Steel structure + PVC warehouse |
---|---|---|---|
Construction cost | 100% | 85% | 78% |
Maintenance cycle | 10-year overhaul | 7-year renovation | 15-year maintenance-free |
Energy consumption | 100% | 95% | 62% |
III. Global typical scenario application verification
3.1 Tropical rainy area (Southeast Asia/Latin America)
Philippines food warehouse project:
- Typhoon protection: successfully resisted the 2023 super typhoon “Mava” (level 17).
- Anti-mildew and antibacterial: antimicrobial coating on the surface of fabric solves mildew in high humidity environment.
3.2 Extremely cold and dry zone (Northern Europe/Canada)
Norwegian fish catch cold chain center:
- Light transmission and heat preservation: natural light in winter saves 34% of lighting/heating energy consumption.
- Snow drainage: 3° arc roof achieves zero snow retention.
3.3 Industrial corrosion zone (coastal/chemical park)
UAE petrochemical spare parts warehouse:
- Corrosion resistance: passed ISO 9227 salt spray test 3000 hours certification.
- Static electricity prevention and control: surface resistance <10⁹Ω to eliminate spark risks.
Ⅳ. Future evolution direction
Intelligent integration
- Integration of photovoltaic film and pvc fabric roof (power generation efficiency 18%).
- Sensors embedded to monitor tension/temperature/deformation in real time.
Material revolution
- Nano self-cleaning coating (rainwater automatically cleans the surface).
- Phase change material interlayer (automatic temperature adjustment and energy saving).
Ⅴ. Conclusion
The combination of steel structure and PVC fabric roof is redefining the value standard of warehouse buildings worldwide:
✓ Faster construction speed – 50% shorter construction period than traditional warehouses.
✓ Lower overall cost – 40% TCO savings in 15-year operation cycle.
✓ Stronger environmental adaptability – full climate coverage from the equator to the polar circle.
✓ More sustainable future – carbon emissions reduction of more than 200 tons/10,000 square meters over the entire life cycle.
This innovative structural system is not only a product of technological progress, but also a strategic solution to cope with global supply chain upgrades, carbon neutrality goals and extreme climate challenges. With the continuous breakthroughs in material technology and intelligent construction, it will become the gold standard for industrial buildings in the next decade.
